Custom Retrofit Kit
Energy efficient LED light engine offers high lumen output as well as high efficacy
Custom mounting plate and accessory options customized to your exact needs

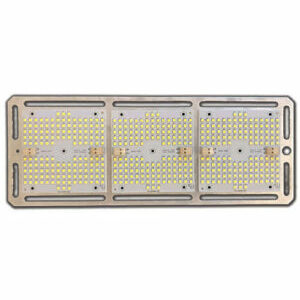

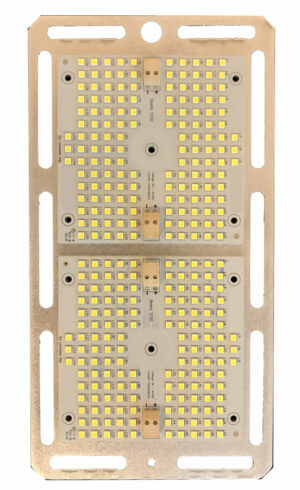

Compact and optimized LED board for concentrated and powerful lighting distribution
Three color temperatures available. (5000K, 4000K & 3000K)
5 Year Warranty
Additional information
| Lumens | 15260 |
|---|---|
| Watts | 90 |
| Lumens per Watt | 156.5 |
| Light Engine | Three S150 board |
| I70 Lifetime | 100, 000 hours |
| CRI | 80 |
| CCT | 5000K 4000K 3000K |
| Operating Enviornment | -40C to +50C ambient, non-condensing |
| IP Rating | N/A |
| Optical Distribution | 120 degrees |
| Voltage | 120 – 277VAC |
| Finish | Aluminium |
| Mounting | Customer Dependent |
| Dimming | 0-10VDC |
| Power Factor | >0.90 |
| THD | <20% |
| Warranty | Standard limited 5-year warranty. Optional 10-year warranty available. Contact LLT for more details. |
