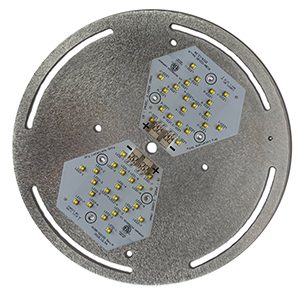

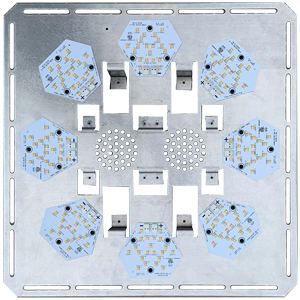

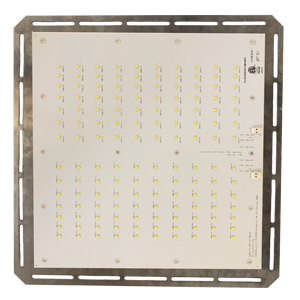

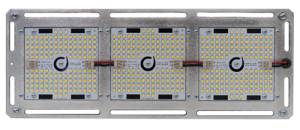

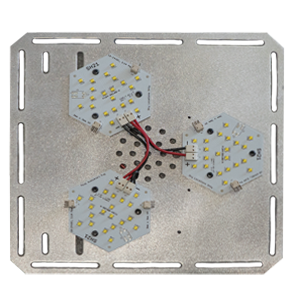

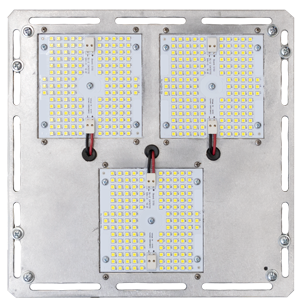

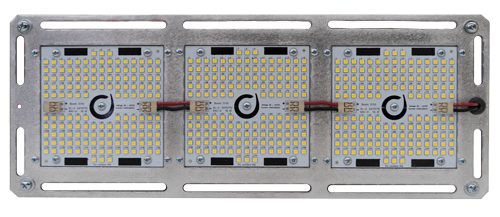

Universal LED Retrofit Kits (UKITS)
Convert your existing lighting fixtures to bright and efficient LED lighting. Our Universal LED Retrofit Kits come with mounting tabs that allow the retrofits to be easily mounted in a variety of fixtures from downlights to parking lot lights.
- Energy efficient LED light engine offers high lumen output as well as high efficacy

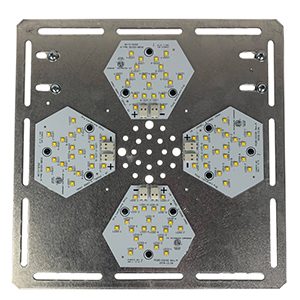

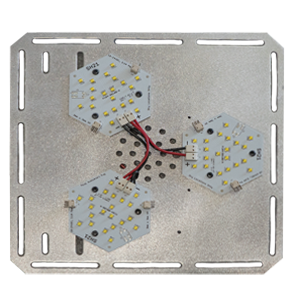

- Kit Includes universal mounting plate combined with mounting tabs for unlimited fixture applications

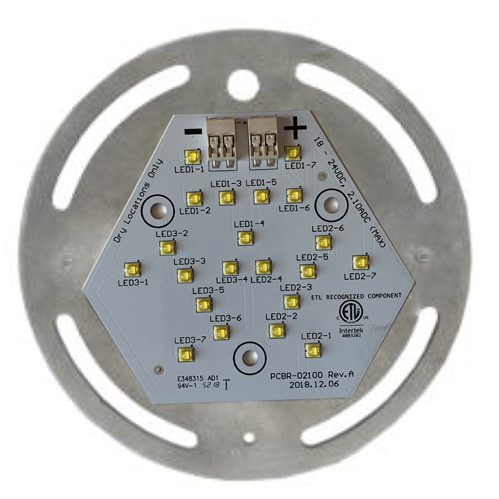

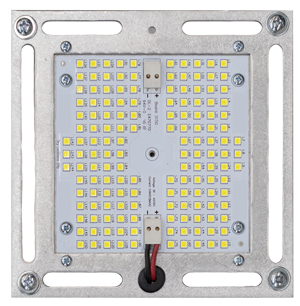

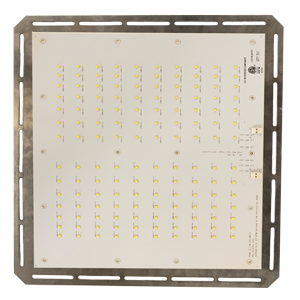

- Compact and optimized LED board for concentrated and powerful light distribution
- Three color temperatures available: 5000K, 4000K & 3000K
- 5 Year Warranty
Additional information
| Weight | 1.06 lbs |
|---|---|
| Dimensions | 5.25 × 5.25 × 2.65 in |
| Lumens (lm) | 4500, 4200, 8800, 13300, 17800, 28200, 34690, 5000, 10000, 15000 |
| Watts (W) | 35W, 40W, 69W, 104W, 139W, 221W, 271W, 35W, 65W, 98W |
| Efficacy (lm/W) | 128, 105, 128, 128, 128, 128, 128, 143, 154, 153 |
| I70 Lifetime | 100, 000 hours |
| CRI | ≥70, ≥70, ≥70, ≥70, ≥70, ≥70, ≥70, ≥80, ≥80, ≥80 |
| CCT | 3000K, 4000K, 5000K |
| Operating Enviornment | -40°C to 50°C (MUST BE ENCLOSED IN A FIXTURE) |
| Optical Distribution | 120° Beam Angle |
| Voltage | 120 – 277VAC, 50/60 Hz. |
| Finish | 0.1” Thick Aluminum 3003 Alloy Base / Standard Aluminum Finish |
| Mounting | Universal Mounting Tabs included (2.50”, 4.75”, 7.00”) |
| Weight | 1.06 lbs., 4.00 lbs., 1.62 lbs., 3.86 lbs., 3.94 lbs., 5.73 lbs., 11.91 lbs, 2.40 lbs., 4.20 lbs., 6.20 lbs. |
| Dimming | 0-10V Dimming |
| Power Factor | > 0.90 |
| THD | < 20% |
| Warranty | Standard limited 5-year warranty. |
